Contents



1 Introduction

Spécifications :

Divide and conquer: use the modular conception historically introduce by electronics.

  • Physical detector
  • Electronic DAQ
  • Online server
  • Slow control software
  • DAQ software
  • Database (included or not into the SLC module)

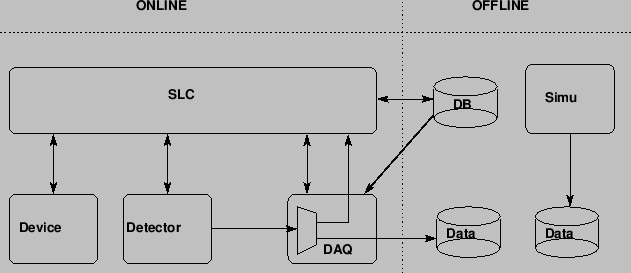

Figure: Generic architecture
\begin{figure}\centering \includeImage[scale=0.7]{archi} \end{figure}


2 Electronic DAQ

  • The electronic DAQ is the layer to interact with the detector composed by ASU cards.
  • The electronic DAQ is composed by DIF, potentials DCC, LDA and CCC cards.
  • The electronic DAQ is driven by a unique CCC card managing the global state machine.
  • The electronic DAQ is accessible via an undefined number of LDA cards (about 3).
  • The electronic LDA cards cannot be access by two different machine at a time.
  • The electronic LDA cards offer only one ethernet physical port to software.
  • The electronic LDA's software ports cannot be slitted into data and control IP ports by a switch.


3 Online server

The goal of this new version is to allows 2 programs (data acquisition and slow control) to run in the same time.

  • The online server act as an IP switch providing both slow control and data acquisition output cables.
    Note: the reason to upgrade from a library to a server is to divide by 2 the memory and cpu resources of the PC that drives the LDA.
  • The server will embed at less 2 thread, one for data acquisition and one for slow control.
  • The server will duplicate internally all the electronic DAQ cards registers.
  • The slow control API will evolve up to SOAP API.
  • The data acquisition API will allows TCP pushing (one more thread) or shared memory buffer Pooling.
  • The Online server will not anymore connect to the database to read the elctronic DAQ configuration, this information will be given by the slow control software or else by a local XML file.

Todo:

  • Logger
  • Pcap injector (to test using tcpdump)
  • Callback-function that listeen (to test with the injector)
  • SLC Thread drive by socket (to test with telnet)
  • SLC queries for internal Tree configuration (to test with telnet)
  • SLC query for detector configuration
  • DAQ output


3.1 Syslog and Syslogd

3.1.0.1 Syslogd server

# apt-get install sysklogd

file /etc/sysklogd.conf or /etc/default/syslogd

SYSLOGD="-r -m0"

file /etc/syslog.conf or /etc/rsyslog.conf.d/50-default.conf

local4.debug         /var/log/GASOline.log


# /etc/init.d/sysklogd restart

3.1.0.2 Syslog client

file /etc/syslog.conf or /etc/rsyslog.conf.d/50-default.conf

local4.debug         /var/log/gasoline.log
local4.debug         @polntnr


# /etc/init.d/rsyslog restart
or
# /etc/init.d/syslog restart

$ cd gazoline/log
$  ./utlog -f local4 -s debug


4 Slow control software

  • By using dedicated ethernet cables for the slow control, we can imagine a unique slow control GUI running on another host and managing all the Elecronic DAQ.
  • The main advantage of a dedicated SLC soft among XDAQ is a friendly approach to the database (a GUI).
  • Indeed, the slow control program will evolve around a python tree-view imported from and exportable to the DB.
  • The slow control program should also drive the DAQ software, we guess using SOAP too.


5 DAQ software

  • The DAQ software is mainly an event builder that serialise all the events from electronic DAQ into a physical output format.
  • The DAQ's output must be both store on hard-disc and send to a real-time monitoring software.
  • We are wandering if or if not the DAQ software should have access or not to the database.
  • We must define a policy for lost packets that will not penalise the electronic DAQ neither the software DAQ.


6 Data base

  • Need to enter the ECAL detector parameters into the oracle DB.
  • Is the DB for configuration and for run acquisition storage the same ?
